Smart CCTV Fall Detection
BACKEND · AI · SYSTEM CASE STUDY
An Edge-AI monitoring project that reduces nursing-home RTSP false positives through three-stage pose, fall-object, and site-context zero-shot validation.

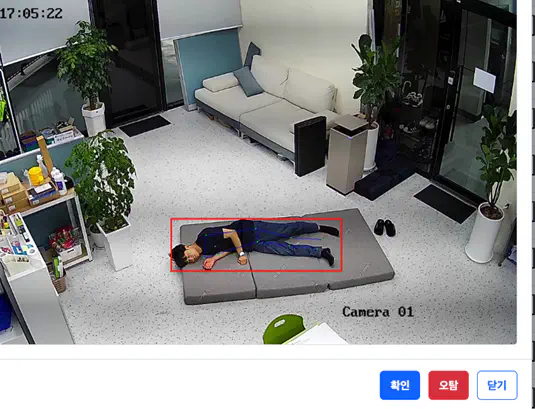

Key Screens
Troubleshooting
1. Pose estimation alone was unstable for occlusion, distance, and vertical falls
Joint confidence, body angle, aspect ratio, and dwell-time heuristics changed with camera angle and occlusion. Pose remained the first candidate stage, while a fall/person detector became the second verifier.
2. The detector still confused sitting, bending, and lower-body occlusion with falls
Hard negatives for sitting, bending, and partial occlusion were added. Overlapping or adjacent boxes were grouped, and a fall survived only when confidence and body coverage were sufficient.
3. Model output alone could not interpret the site context
The final verifier compares candidate visual features with site-specific prompts such as a person fully lying on the floor, sitting on a chair, bending, or partially hidden by furniture.
System Flow
- Pose keypoints and body tilt produce a fall candidate from RTSP frames.
- A YOLO
fall/personmodel verifies the cropped candidate. - Nearby boxes are grouped and confidence and coverage are measured.
- Visual features and site-specific prompts perform zero-shot validation.
- Only events above 0.70 confidence and the time condition are confirmed and sent to snapshots, DB, and alerts.
